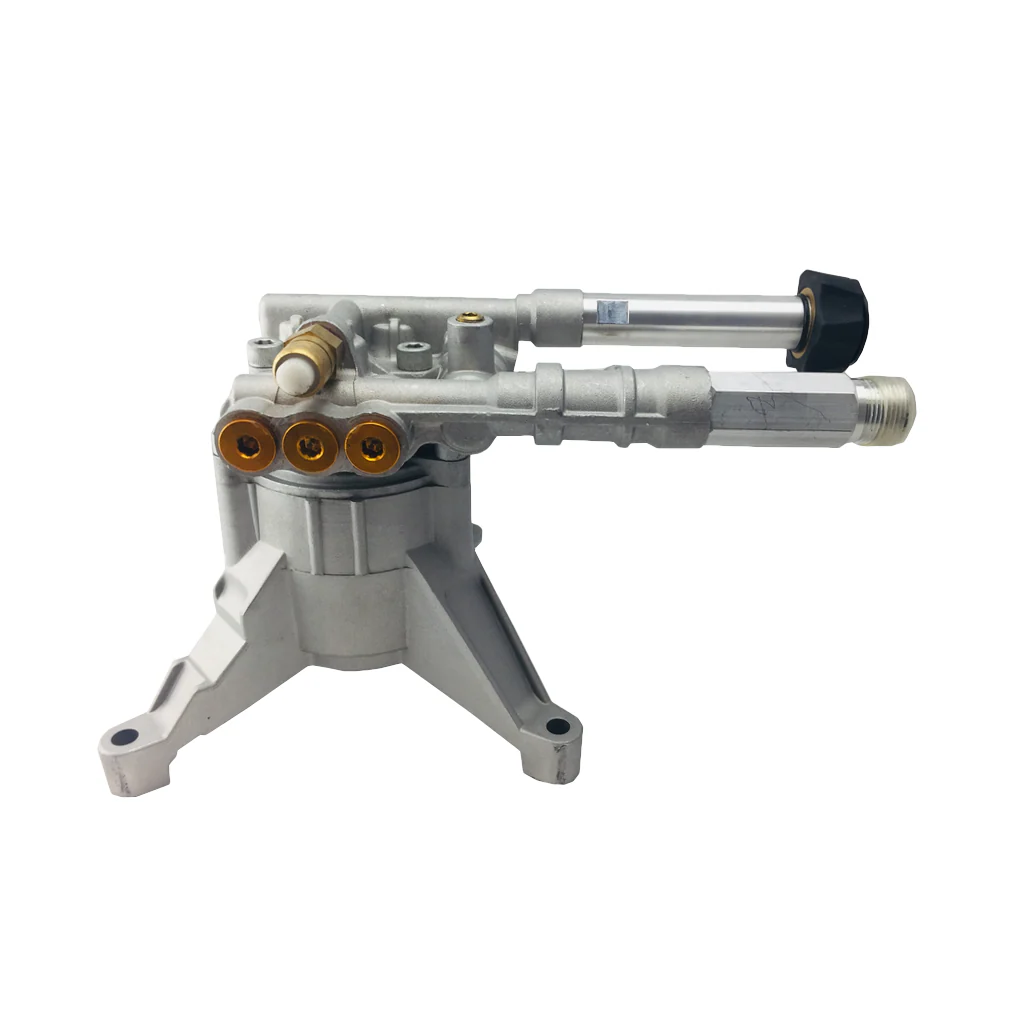

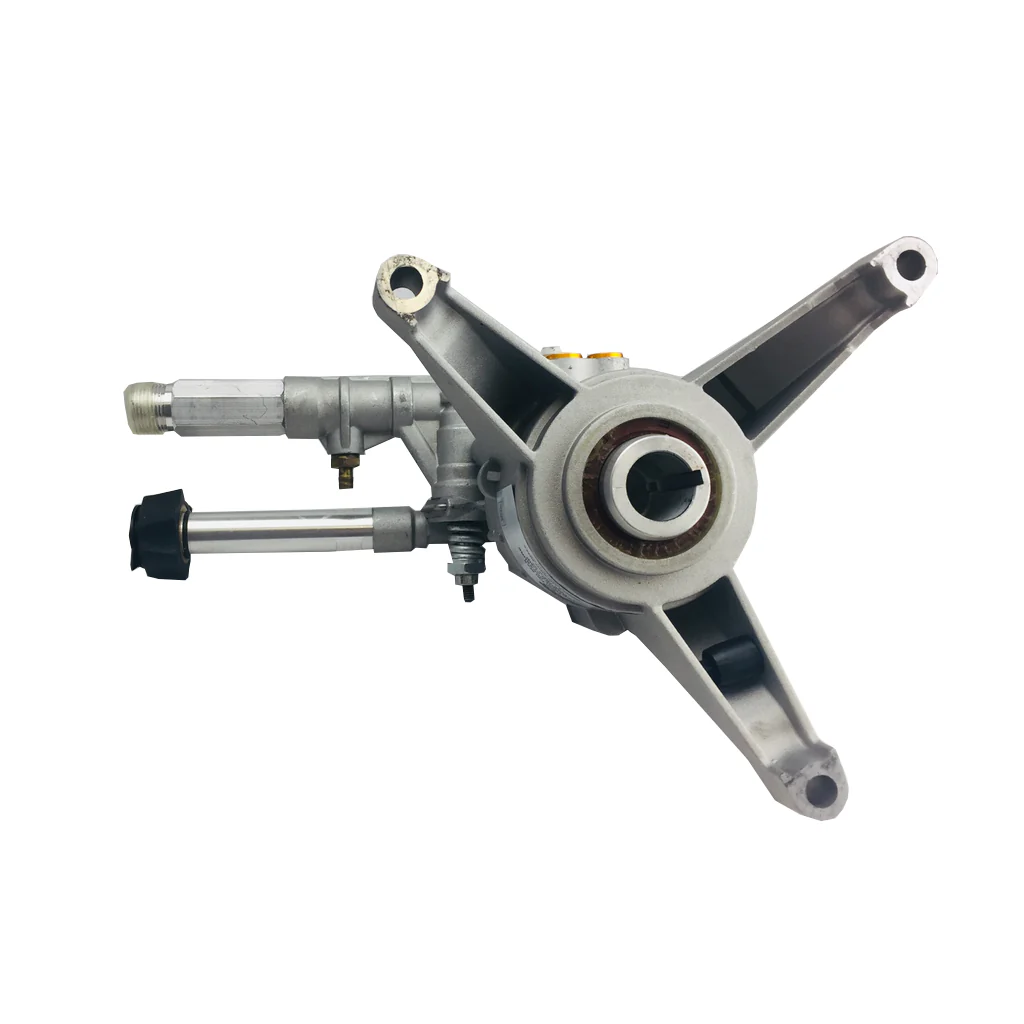

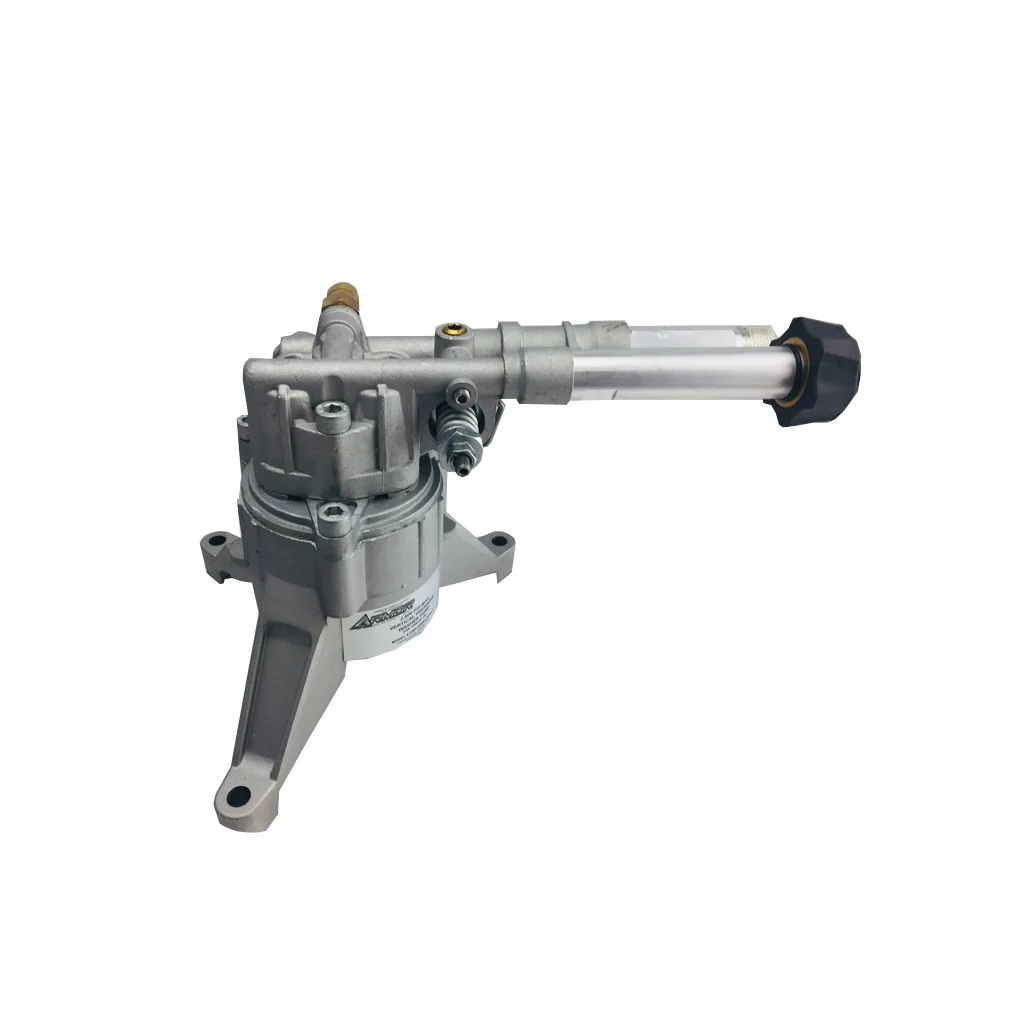

Armor Axial Pressure Washer Pump 2 2 GPM 2 600 PSI Front Load
Features:
This direct drive vertical mount axial plunger pump will fit most pressure washers that have a vertical shaft gasoline powered engine with a 7/8" key style shaft. It requires a minimum 140cc gasoline engine and delivers up to 2600 PSI and 2.2 GPM of Water Flow.
Designed for pressure washers where the water inlet and outlet comes out of the "front" of the engine.
Suitable replacement for any pressure washers that are front facing, with a 7/8" vertical shaft.
Technical Specs:
- 3,400 RPM Max
- Shaft Size: Vertical 7/8"
- Hose Connections: 22mm x 14 Male Outlet Thread
- Inlet Thread Female Garden Hose Connector
- Adjustable Unloader Valve
- Built-In Easy Start Valve
- 140 Degree F (60 Degree C) Maximum Water Inlet Temperature
- Prefilled with Oil
- Thermal Relief Valve Included
- Soap/Chemical Injection Kit
- Weight: 6.6 lbs
- Shipping Dimensions: 13" x 10" x 9"
Compatible With These Pressure Washer Models:
B & S Powerflow - 020569, 020656
Craftsman - CMXGWAS020733, CMXGWAS020734, CMXGWAS020735
Any Many Others...
