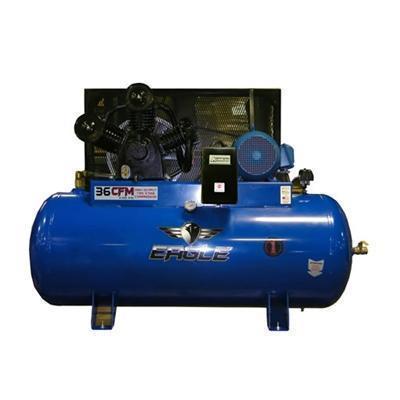

Eagle 10 Horsepower 120 Gallon Air Compressor

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

Features

• CFM / PSI: 36.0 CFM @ 100 PSI
• Horse Power: 10.0
• Max Rated PSI: 200
• Air Tank Capacity (Gal): 120
• Electric Motor: 230V
• Phase: 3
• Motor RPM: 1800
• Bare Comp. RPM: 1080
• Amp Draw: 26.6
• Pressure Switch: 125-145
• Rugged Compressor With Cast Iron Cylinders
• "V" Design Minimizes Vibration
• Individual & Removable Cylinders For Smoother Operation
• Engine Idle Control Feature That Reduces Cost & Excessive Wear
• Convenient Oil Drain On Front Of Unit
• Easy View Oil Sight Gauge
• Metal Air Filter With Auto Drop Feature
• High Efficiency Reed Valves For Maximum Performance
• Efficient Heat Removal From Pulley For Cooler Running
• Sturdy Metal Belt Guard
• Outlet Valve Included
• 1 Year Limited Warranty
• TMI387500

DIM:  72" x 27" x 52"

WEIGHT:  770 LBS

Item	Description	Product Code
1	Compressor w/ Flywheel	HPT10A
2	Discharge Tube (2.5ft) ASSY	TU-11.5-BR
	Discharge Elbow	49-16H
3	Pressure Gauge	PG200-2.5R
4	Outlet Valve	BV1MF
5	Air Receiver (tank)	120HE24X68-B
6	Drain Cock -Assembly	240-B
7	V-Belt	B89
8	Belt Guard	BG120GAL
9	Motor - 1 Phase, 208/230V	EM10.0-18-30
	Mag Starter 7.5 HP 208/240V	1066MS
10	Check Valve	P1010S-T
11	Pressure Switch	21UCBDB-170
12	Pulley - Motor	2B9.4PD
13	Hub or Bushing	SK13/8
14	Unloader Tube	TU-1/4-CU
	**Fittings Required for TU-1/4CU	68-4A
15	Safety Valve	PSV1/4-200
	Eagle Compressor Oil	EAOIL10

		1st Stage		2nd Stage
Item	Description	Qty	Part #	Qty	Part #
1	Intake Filter Assembly	2	51124-5600	N/A	N/A
2	Cylinder Head	2	52133-0101	1	52133-0101
3	Lift Limiter - Discharge Valve Plate	8	51121-3102	2	51121-3102
4	Valve Seat	2	52133-2101	1	52133-2101
5	Valve Seat to Head Gasket	2	52133-2105	1	52133-2105
6	Discharge Valve Plate	8	51121-2103	2	51121-2103
7	Intake Valve Plate	2	52133-2103	1	52133-2103
8	Valve Seat to Cylinder Gasket	2	52133-2104	1	52133-2104
9	Piston	2	52133-5101	1	51174-5201
10	Piston Pin C/W Snap Rings	2	52133-5112	1	51174-5212
11	Piston Pin Bushing	N/A	N/A	1	52174-5208
12	Connecting Rod C/W Dipper	2	52133-5120	1	52174-5220
13	Connecting Rod Bearing (Pair)	2	51133-5109	1	51133-5109
14	Cylinder	2	52133-4101	1	52174-4201
15	Oil Filler Cap	1	51124-4719	N/A	N/A
16	Cylinder to Crankcase Gasket	2	52133-4103	1	52133-4103
17	Oil Sight Glass C/W Gasket	1	51124-4770	N/A	N/A
18	Crankcase	1	52174-4701	N/A	N/A
19	Crankshaft	1	52174-4601	N/A	N/A
20	Front Bearing	1	83501-6309	N/A	N/A
21	Rear Bearing	1	83501-6308	N/A	N/A
22	Crankcase - Rear Bearing Housing Gasket	1	52174-4704	N/A	N/A
23	Rear Bearing Housing	1	52174-4703	N/A	N/A
24	Oil Seal	1	52174-4708	N/A	N/A
25	Crankcase Breather	1	51111-4761	N/A	N/A
26	Flywheel C/W Fasteners	1	52174-6601	N/A	N/A
27	Front Bearing Housing	N/A	N/A	N/A	N/A
28	Crankcase - Front Bearing Housing Gasket	N/A	N/A	N/A	N/A
29	Connecting (Interstage) Tubing	1	52134-7710	1	52174-7720
Misc.	1/4" Street Elbow (Oil Drain)	1	STREL1/4	N/A	N/A
Misc.	Rear Bearing Cover Gasket	1	51134-4707	N/A	N/A
Misc.	Rear Bearing Cover	1	51134-4706	N/A	N/A
	Eagle Oil (2 Litres or 68oz)	1	EAOIL10	N/A	N/A
A	Intake Filter Element Kit Includes:	2	101000-310	N/A	N/A
	- 1x Intake Filter Element
B	Valve Repair Kit Includes:	2	101000-195	1	101000-195
	-Valve Seat to Head Gasket (Item 5)
	-4x Outlet Valve Plates (Item 6)
	-Intake Valve Plate (Item 7)
	-6x Valve Plate Screws
	-Valve Seat to Cylinder Gasket (Item 8)
C	Ring Repair Kit Includes:	2	101000-295	1	101000-280
	-Valve Seat to Head Gasket (Item 5)
	-Valve Seat to Cylinder Gasket (Item 8)
	-2x Compression Rings
	-Oil Control Ring		2x		1x
	-Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not shown)	2	52133-2100	1	52133-2100
