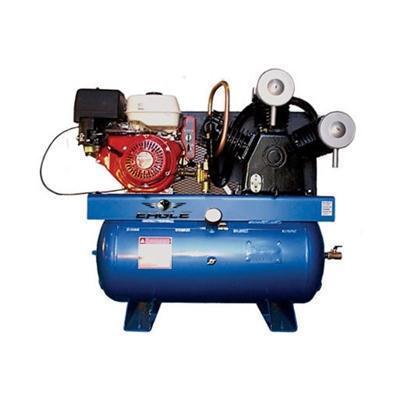

Eagle 13 HP 30 Gallon Air Compressor

THIS ITEM SHIPS TRUCK LINE

LIFT GATE AND RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

Features

• CFM / PSI: 32.0 CFM @ 100 PSI
• Horse Power: 13.0
• Max Rated PSI: 200
• Air Tank Capacity (Gal): 30
• Engine: Honda GX390 Electric Start
• Motor RPM: 3600
• Bare Comp. RPM: 1000
• Amp Draw: Gas
• Pressure Switch: 125-145
• Rugged Compressor With Cast Iron Cylinders
• "V" Design Minimizes Vibration
• Individual & Removable Cylinders For Smoother Operation
• Engine Idle Control Feature That Reduces Cost & Excessive Wear
• Convenient Oil Drain On Front Of Unit
• Easy View Oil Sight Gauge
• Metal Air Filter With Auto Drop Feature
• High Efficiency Reed Valves For Maximum Performance
• Efficient Heat Removal From Pulley For Cooler Running
• Sturdy Metal Belt Guard
• Outlet Valve Included
• 1 Year Limited Warranty
• tmi348800

DIM:  41" x 19" x 50"

WEIGHT:  475 LBS

Item	Description	Product Code	Price
1	Compressor w/ Flywheel	HPT10A	$1,670.00
2	Discharge Tube (2.5ft) ASSY	TU-31-BR	$
3	Pressure Gauge	PG200-2.5R	$12.00
4	Outlet Valve	BV3/4MF	$12.00
5	Air Receiver (tank)	30H16X38TRK-B	$
6	Drain Cock -Assembly	240-B	$12.00
7	V-Belt	B76	$
8	Belt Guard	BG30GAL	$90.00
9	Engine	GX-390UTQAE2-R	$
10	Unloader	NLG-6	$
11	Pulley - Engine	2B4.2SH	$
12	Safety Valve	PSV1/4-200	$12.00
13	Engine Control w/ Cable	TCLP-36-3104	$40.87
	Eagle Compressor Oil	EAOIL10	$4.50

		1st Stage			2nd Stage
Item	Description	Qty	Part #		Qty	Part #
1	Intake Filter Assembly	2	51124-5600		N/A	N/A
2	Cylinder Head	2	52133-0101		1	52133-0101
3	Lift Limiter - Discharge Valve Plate	8	51121-3102		2	51121-3102
4	Valve Seat	2	52133-2101		1	52133-2101
5	Valve Seat to Head Gasket	2	52133-2105		1	52133-2105
6	Discharge Valve Plate	8	51121-2103		2	51121-2103
7	Intake Valve Plate	2	52133-2103		1	52133-2103
8	Valve Seat to Cylinder Gasket	2	52133-2104		1	52133-2104
9	Piston	2	52133-5101		1	51174-5201
10	Piston Pin C/W Snap Rings	2	52133-5112		1	51174-5212
11	Piston Pin Bushing	N/A	N/A		1	52174-5208
12	Connecting Rod C/W Dipper	2	52133-5120		1	52174-5220
13	Connecting Rod Bearing (Pair)	2	51133-5109		1	51133-5109
14	Cylinder	2	52133-4101		1	52174-4201
15	Oil Filler Cap	1	51124-4719		N/A	N/A
16	Cylinder to Crankcase Gasket	2	52133-4103		1	52133-4103
17	Oil Sight Glass C/W Gasket	1	51124-4770		N/A	N/A
18	Crankcase	1	52174-4701		N/A	N/A
19	Crankshaft	1	52174-4601		N/A	N/A
20	Front Bearing	1	83501-6309		N/A	N/A
21	Rear Bearing	1	83501-6308		N/A	N/A
22	Crankcase - Rear Bearing Housing Gasket	1	52174-4704		N/A	N/A
23	Rear Bearing Housing	1	52174-4703		N/A	N/A
24	Oil Seal	1	52174-4708		N/A	N/A
25	Crankcase Breather	1	51111-4761		N/A	N/A
26	Flywheel C/W Fasteners	1	52174-6601		N/A	N/A
27	Front Bearing Housing	N/A	N/A		N/A	N/A
28	Crankcase - Front Bearing Housing Gasket	N/A	N/A		N/A	N/A
29	Connecting (Interstage) Tubing	1	52134-7710		1	52174-7720
Misc.	1/4" Street Elbow (Oil Drain)	1	STREL1/4		N/A	N/A
Misc.	Rear Bearing Cover Gasket	1	51134-4707		N/A	N/A
Misc.	Rear Bearing Cover	1	52134-4706		N/A	N/A
	Eagle Oil (2 Litres or 68oz)	1	EAOIL10		N/A	N/A
A	Intake Filter Element Kit Includes:	2	101000-310		N/A	N/A
	- 1x Intake Filter Element
B	Valve Repair Kit Includes:	2	101000-195		1	101000-195
	-Valve Seat to Head Gasket (Item 5)
	-4x Outlet Valve Plates (Item 6)
	-Intake Valve Plate (Item 7)
	-6x Valve Plate Screws
	-Valve Seat to Cylinder Gasket (Item 8)
C	Ring Repair Kit Includes:	2	101000-295		1	101000-280
	-Valve Seat to Head Gasket (Item 5)
	-Valve Seat to Cylinder Gasket (Item 8)
	-2x Compression Rings
	-Oil Control Ring		2x			1x
	-Cylinder to Crankcase Gasket (Item 16)
D	Valve Plate Assembly (Not shown)	2	52133-2100		1	52133-2100
