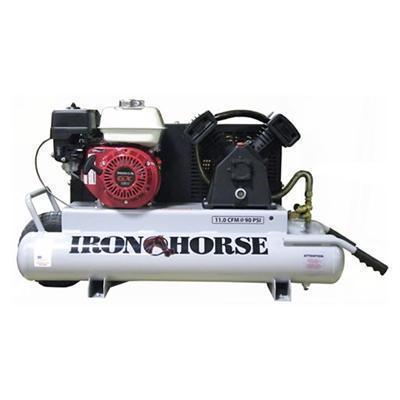

Iron Horse Gas Air Compressor

 Shipping Charges  Do Not Include Lift Gate And Residential Fees

Features

• CFM / PSI: 11 CFM @ 90 PSI
• HorsePower: 5.5
• Max Rated PSI: 150
• Air Tank Capacity (Gal): 10
• Honda GX160 Engine
• Motor RPM: 3450
• Bare Comp. RPM: 1250
• Amp Draw: Gas
• Unloader Valve: 95-125
• V Twin Cast Iron Pump
• 10" Pneumatic Tire with Steel Rim Dual Ball Bearings
• Fully Enclosed Metal Belt Guard
• Oil Sight Glass
• Easy Start Valve
• 1 Year Compressor Warranty
• 3 Year Engine Warranty
• TMI113500

DIM:  50" x 18" x 24"
WEIGHT:  242 LBS

* Shipping Dimensions- 4pcs 798# 45x48x76



Item	Description	Product Code
1	Compressor w/ Flywheel	CC2065
2	Discharge Tube	TU-23-AL
3	Pressure Gauge	PG200-2.5SI1/4
4	Air Receiver (tank)	10TT41X5-IH
5	Drain Cock -Assembly	240-B           (2)
6	V-Belt	A49
7	Belt Guard	TT-GUARD
8	Engine	GX-160UT1QX2-R
9	Unloader	NRP-A-95-125
10	Pulley - Engine	MA38X3/4
11	Safety Valve	PSV1/4-150
12	Engine Control w/ Cable	TCP-48
13	Handle Grip	TT-GRIP
14	Vibration Dampner	TT-FOOT
15	Pneumatic Wheel	TT-WHEEL-SQ-FF
	Axle	WA1001
16	Ball Valve	BV1/4MXF
	Eagle Compressor Oil	EAOIL10

Item	Description	Quantity	Part Number
1	Bolt for Cylinder Head	8	TB-30-01
2	Washer for Head Bolt	8	TB-30-02
3	Cylinder Head	2	TB-30-03
4	Air Filter	2	TB-30-04
5	Washer for Air Filter	4	TB-30-05
6	Bolt for Air Filter	4	TB-30-06
7	Head Gasket	2	TB-30-07
8	Valve Seat	4	TB-30-08
9	Aluminum Gasket	2	TB-30-09
10	Valve Plate Reed	4	TB-30-10
11	Valve Seat / Cylinder Gasket	2	TB-30-11
12	Cylinder	2	TB-30-12
13	Cylinder to Crankcase Nut	8	TB-30-13
14	Cylinder-Crank Washer	8	TB-30-14
15	Cylinder-Crank Bolt	8	TB-30-15
16	Cylinder-Crank Gasket	2	TB-30-16
17	Compression Rings	4	TB-30-17
18	Ring Kit	2	TB-30-18
19	Oil Control Ring	2	TB-30-19
20	Piston	2	TB-30-20
21	Piston Pin	2	TB-30-21
22	Piston Pin Clip	2	TB-30-22
23	Connecting Rod	2	TB-30-23
24	Oil Splasher	2	TB-30-24
25	Oil Splasher Bolt	2	TB-30-25
26	3-Way Connector Pipe	2	TB-30-26
27	Exhaust Pipe Nut	1	TB-30-27
28	Elbow Connector Pipe	1	TB-30-28
29	Intercooler Tube	1	TB-30-29
30	Bearing Cover Bolt	1	TB-30-30
31	Bearing Cover Bolt Washer	4	TB-30-31
32	Front Bearing Cover	4	TB-30-32
33	Oil Sight Glass Gasket	1	TB-30-33
34	Oil Sight Glass	1	TB-30-34
35	Oil Drain Plug	1	TB-30-35
36	Front Bearing Cover Gasket	1	TB-30-36
37	Oil Fill Plug Washer	1	TB-30-37
38	Oil Fill Plug	1	TB-30-38
39	Crankcase	1	TB-30-39
40	Front Bearing	1	TB-30-40
41	Crankshaft	1	TB-30-41
42	Rear Bearing	1	TB-30-42
43	Crankshaft Oil Seal	1	TB-30-43
44	Rear Bearing Cover Gasket	1	TB-30-44
45	Rear Bearing Cover	1	TB-30-45
46	Crankcase Breather and O Ring	1	TB-30-46
47	Rear Cover Bolt Washer	4	TB-30-47
48	Rear Cover Bolt	4	TB-30-48
49	Flywheel	1	TB-30-49
50	Flywheel Cover Washer	1	TB-30-50
51	Flywheel Lock Washer	1	TB-30-51
52	Flywheel Bolt	1	TB-30-52
53	Air Filter Element	2	TB-10-43E
A	Valve Repair Kit	1	TB-30-53
